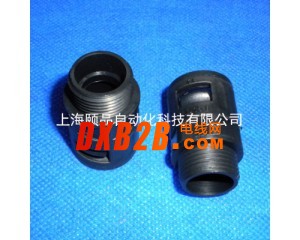

EPIN尼龙软管直接头（EPIN Nylon flexible connector）
产品名称：尼龙软管快速直接头
产品材质：尼龙PA6；
螺纹规格：公制螺纹，德制螺纹；
工作温度：-40℃到+110℃；
产品颜色：黑色和灰色，其他颜色可定做；
产品特性：内锁扣和本体特殊设计，装卸快速方便，只需拔插，无需工具；
使用方法：软管接头是软管的配套产品，可接入设备箱体上，
也可以根据选用螺纹接入进出口为内螺纹的电动设备上，只需软管插入接口即可。
螺纹规格：公制螺纹，德制螺纹；
工作温度：-40℃到+110℃；
产品颜色：黑色和灰色，其他颜色可定做；
产品特性：内锁扣和本体特殊设计，装卸快速方便，只需拔插，无需工具；
使用方法：软管接头是软管的配套产品，可接入设备箱体上，
也可以根据选用螺纹接入进出口为内螺纹的电动设备上，只需软管插入接口即可。
|
EPIN-M 公制螺纹 Metric Thread Straight Connector |
|||||||
|
适配软管
|
螺纹规格
|
Φl
|
ΦB
|
C
|
D
|
E
|
ΦF
|
|
Fits to
|
Thread
|
ID
|
OD
|
Thread
|
Total
|
Total
|
Connection
|
|
Tubing size
|
Dimension
|
mm
|
mm
|
Length
|
Length
|
Height
|
mm
|
|
AD10.0
|
M10*1.0
|
7
|
17
|
11.5
|
34
|
33.5
|
16
|
|
M12*1.5
|
8.5
|
17
|
11.5
|
34
|
33.5
|
16
|
|
|
AD13.0
|
M12*1.5
|
8
|
20
|
11.5
|
38.5
|
36
|
20
|
|
M16*1.5
|
11
|
20
|
11.5
|
38.5
|
36
|
20
|
|
|
AD15.8
|
M16*1.5
|
12
|
23
|
12
|
43.5
|
40.5
|
23
|
|
M18*1.5
|
14
|
23
|
12
|
43.5
|
40.5
|
23
|
|
|
AD18.5
|
M20*1.5
|
15.5
|
26
|
13
|
47.5
|
45
|
27
|
|
AD21.2
|
M20*1.5
|
15.5
|
29.5
|
13
|
51.5
|
48
|
27
|
|
M22*1.5
|
18
|
29.5
|
13
|
51.5
|
48
|
27
|
|
|
M24*1.5
|
18
|
29.5
|
13
|
51.5
|
48
|
27
|
|
|
M25*1.5
|
18
|
29.5
|
13
|
51.5
|
48
|
27
|
|
|
AD28.5
|
M25*1.5
|
20.5
|
37
|
13
|
59
|
56
|
34
|
|
M27*1.5
|
21.5
|
37
|
13
|
59
|
56
|
34
|
|
|
M30*2.0
|
23.5
|
37
|
13
|
59
|
56
|
34
|
|
|
M32*1.5
|
23.5
|
37
|
13
|
59
|
56
|
34
|
|
|
AD34.5
|
M32*1.5
|
25
|
44
|
15
|
70.5
|
65.5
|
43
|
|
M33*2.0
|
25
|
44
|
15
|
70.5
|
65.5
|
43
|
|
|
M36*1.5
|
31
|
44
|
15
|
70.5
|
65.5
|
43
|
|
|
M40*1.5
|
31
|
44
|
15
|
70.5
|
65.5
|
43
|
|
|
AD42.5
|
M40*1.5
|
32
|
52
|
15
|
81
|
73.5
|
52
|
|
M42*2.0
|
36
|
52
|
15
|
81
|
73.5
|
52
|
|
|
M48*2.0
|
39
|
52
|
15
|
81
|
73.5
|
52
|
|
|
M50*1.5
|
39
|
52
|
15
|
81
|
73.5
|
52
|
|
|
AD54.5
|
M50*1.5
|
43
|
64
|
16
|
91
|
86.5
|
68
|
|
M56*2.0
|
48.5
|
64
|
16
|
91
|
86.5
|
68
|
|
|
M60*1.5
|
48.5
|
64
|
16
|
91
|
86.5
|
68
|
|
|
M63*1.5
|
48.5
|
64
|
16
|
91
|
86.5
|
68
|
|
|
M64*2.0
|
48.5
|
64
|
16
|
91
|
86.5
|
68
|
|
|
EPIN-PG螺纹制 PG Thread Straight Connector
|
|||||||
|
适配软管
|
螺纹规格
|
Φl
|
ΦB
|
C
|
D
|
E
|
ΦF
|
|
Fits to
|
Thread
|
ID
|
OD
|
Thread
|
Total
|
Total
|
Connection
|
|
Tubing size
|
Dimension
|
mm
|
mm
|
Length
|
Length
|
Height
|
mm
|
|
AD10.0
|
PG7
|
8.5
|
17
|
11.5
|
34
|
33.5
|
16
|
|
AD13.0
|
PG9
|
11
|
20
|
11.5
|
38.5
|
36
|
20
|
|
AD15.8
|
PG11
|
14
|
23
|
12
|
43.5
|
40.5
|
23
|
|
AD18.5
|
PG13.5
|
15.5
|
26
|
13
|
47.5
|
45
|
27
|
|
AD21.2
|
PG16
|
18
|
29.5
|
13
|
51.5
|
48
|
27
|
|
AD28.5
|
PG21
|
23.5
|
37
|
13
|
59
|
56
|
34
|
|
AD34.5
|
PG29
|
31
|
44
|
15
|
70.5
|
65.5
|
43
|
|
AD42.5
|
PG36
|
36
|
52
|
15
|
81
|
73.5
|
52
|
|
AD54.4
|
PG48
|
48.5
|
64
|
15
|
91
|
86.5
|
68
|
|
EPIN-G 制螺纹G Thread Straight Connector
|
|||||||
|
适配软管
|
螺纹规格
|
Φl
|
ΦB
|
C
|
D
|
E
|
ΦF
|
|
Fits to
|
Thread
|
ID
|
OD
|
Thread
|
Total
|
Total
|
Connection
|
|
Tubing size
|
Dimension
|
mm
|
mm
|
Length
|
Length
|
Height
|
mm
|
|
AD10.0
|
G1/4"
|
8.5
|
17
|
11.5
|
34
|
33.5
|
16
|
|
AD13.0
|
G3/8"
|
11
|
20
|
11.5
|
38.5
|
36
|
20
|
|
AD15.8
|
G3/8"
|
12
|
23
|
12
|
43.5
|
40.5
|
23
|
|
G1/2"
|
14
|
23
|
12
|
43.5
|
40.5
|
23
|
|
|
AD21.2
|
G1/2"
|
15.5
|
29.5
|
13
|
51.5
|
48
|
27
|
|
AD28.5
|
G3/4"
|
21.5
|
37
|
13
|
59
|
56
|
34
|
|
AD34.5
|
G1"
|
25
|
44
|
15
|
70.5
|
65.5
|
43
|
|
AD42.5
|
G1-1/4"
|
36
|
52
|
15
|
81
|
73.5
|
52
|
|
AD54.4
|
G1-1/2"
|
39
|
64
|
15
|
91
|
86.5
|
68
|
|
G2"
|
48.5
|
64
|
15
|
91
|
65.5
|
68
|
|
