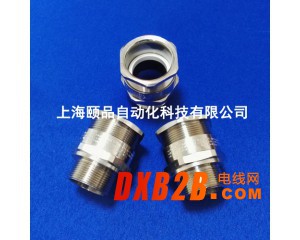

A2F系列CMP非铠装防爆密封接头（CMP A2F系列防爆格兰）

EPIN原装进口CMP防爆格兰系列，广泛应用于石油石化和海洋钻井平台，有ATEX认证和ABS等认证。

EPIN-CMP-A2F系列防爆电缆密封接头(Exe、Exd)

A2F Series of explosion-protected CMP cable gland

上海颐品自动化科技有限公司



CMP - The Cable Gland and Connector Specialists

A2F Globally Approved, Explosive Atmosphere Cable Gland
For all types of Unarmoured & Braid Armour Cables
• Displacement type flameproof seal
• Designed to prevent Coldflow
• No external cable clamping required
• Deluge protected
• -60?C to +130?C (standard), -20?C to 200?C (ThermEx option page 91)
• Globally marked, IECEx, ATEX & CSA

CMP Order Reference	OD Max.	ID Max.	Male Thread	M制订货号	PVC护套	上海颐品
A2F 20S/16	3.20	8.70	M20	20S16A2F1RA	PVC04	EPIN
A2F 20S	6.10	11.70	M20	20SA2F1RA	PVC04	EPIN
A2F 20	6.50	14.00	M20	20A2F1RA	PVC05	EPIN
A2F 25	11.10	20.00	M25	25A2F2RA	PVC09	EPIN
A2F 32	17.00	26.30	M32	32A2F3RA	PVC10	EPIN
A2F 40	23.50	32.20	M40	40A2F4RA	PVC13	EPIN
A2F 50S	31.00	38.20	M50	50SA2F5RA	PVC14	EPIN
A2F 50	35.60	44.10	M50	50A2F6RA	PVC17	EPIN
A2F 63S	41.50	50.00	M63	63SA2F7RA	PVC20	EPIN
A2F 63	47.20	56.00	M63	63A2F8RA	PVC22	EPIN
A2F 75S	54.00	62.00	M75	75SA2F9RA	PVC24	EPIN
A2F 75	61.10	68.00	M75	75A2F10RA	PVC26	EPIN
A2F 90	66.60	80.00	M90	90A2F11RA	PVC31	EPIN
A2F 100	76.00	91.00	M100	100A2F12RA	PVC32	EPIN
A2F 115	86.00	98.00	M115	115A2F13RA	PVC34	EPIN
A2F 130	97.00	115.00	M130	130A2F14RA	PVC35	EPIN
