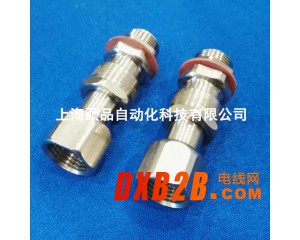

Hawke接管式防爆格兰 501/414 系列
Cable Glands for Hazardous Area
Flameproof Exd & Increased Safety Exe Dual Certifi ed ATEX / IECEx
Application
• Outdoor or indoor use.
• For use with non-armoured elastomer and plastic insulated cables installed in conduit.
• See technical section for installation rules and regulations.
Os M20² ½" M20 - 3.0 8.0 - - 54.5 24.0 26.5
O M20² ½" M20 - 7.5 11.9 - - 54.5 24.0 26.5
A M20 ¾" or ½" M20 - 11.0 14.3 8.5 13.4 56.4 30.0 32.5
B M25 1" or ¾" M25 - 13.0 20.2 9.5 15.4 48.2 36.0 39.5
C M32 1¼" or 1" M32 - 19.0 26.5 15.5 21.2 61.6 46.0 50.5
C2 M40 11⁄2" or 11⁄4" M40 - 25.0 32.5 22.0 28.0 64.6 55.0 60.6
D M50 2" or 11⁄2" M50 - 31.5 44.4/42.3 1 27.5 34.8 83.2 65.0 70.8
E M63 21⁄2" or 2" M63 - 42.5 56.3/54.3 1 39.0 46.5 83.2 80.0 88.0
F M75 3" or 21⁄2" M75 - 54.5 68.2/65.3 1 48.5 58.3 86.4 95.0 104.0
Technical Data
• Flameproof Exd and Increased Safety Exe II 2 GD ExtD A21.
• Certifi cate No’s: baseefa06ATEX0056X and IECEx BAS 06.0013X.
• Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
• Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1,
IEC/EN 60079-7, IEC/EN 61241-0 and IEC/EN 61241-1.
• Ingress Protection: IP66, IP67 and IP 68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
• Deluge Protection to DTS01.
• Operating Temperature Range: -60°C to +100°C.
• Assembly Instruction Sheet: AI 310.
• Alternative certifi cation options available
Features
• Provides a cable retention seal onto the cables outer sheath.
• When used in Increased Safety applications, this cable gland may
be used with braided cable where the braid and the cables outer
sheath pass into the enclosure. The braid must be suitably
terminated into the enclosure.
• Provides female running coupler for cable gland or conduit entry.
• Manufactured in Brass (standard), Nickel Plated Brass,
316 Stainless Steel or Aluminium.
• Brass NPT entries are nickel plated as standard.
