CCG Cable Glands - manufacturers and suppliers of the unique patented Captive Cone Glands,
junction boxes, adaptors, reducers, plugs, breather drain plugs…

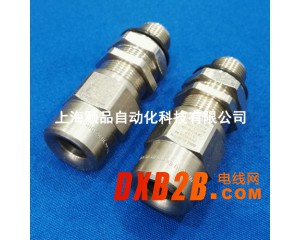

CCG ATEX cable gland-FLP TR Conditions for Safe Use - X Features and Benefits For Group I underground mines, Group II, III, Zone 1, 2, 21 and 22 hazardous areas. No loose parts that can get lost. Fitted with specially formulated captive elastomeric seal provides Built-in Safety TM . Provided with an extra gripper seal to grip the cable. Precision manufactured from high quality brass (Marine Grade TM Electroless Nickel Plated) available in stainless steel 316/316L on request. Complete with thread sealing gasket and an end cap safety gauge for correct gland selection. Type: FLP TR Gland Material: Brass (Marine Grade TM Electroless Nickel Plated), Stainless Steel 316/316L Seal Material: Standard Thermoset Elastomer or Extreme Temperature Seals Cable Type: Unarmoured Sealing Area: Outer sheath Optional Accessories: Adaptor, Reducer and Shroud Note: The installer should ensure that the materials are suitable for the installation environment. COMPRESSION GLAND for Unarmoured Cable Ex db I/IIC, Ex eb I/IIC, Ex tb IIIC, Ex nR IIC
All dimensions except NPT are in mm.
052400-16 00-16ss M16x1.5 15 - - 3.0 8.0 46.0 25.0 28.0 32.5
052400 00-20ss M20x1.5 15 ?/? 15 3.0 8.0 46.0 25.0 28.0 32.5
0524-0 0-20s M20x1.5 15 ?/? 15 8.0 11.5 46.0 25.0 28.0 32.5
052401 1-20 M20x1.5 15 ?/? 15 11.5 14.0 48.0 27.0 30.0 32.5
052402 2-25 M25x1.5 15 ?/1 15/19 14.0 20.2 60.0 40.0 45.0 47.5
052403 3-32 M32x1.5 15 1/1? 19 20.0 26.5 76.0 45.0 51.0 55.0
052404 4-40 M40x1.5 15 1?/1? 19/21 26.5 34.0 84.0 55.0 62.0 65.0
052455 5s-50s M50x1.5 15 1?/2 21 32.5 38.0 90.0 70.0 79.0 82.5
052405 5-50 M50x1.5 15 1?/2 21 38.0 44.5 90.0 70.0 79.0 82.5
052465 6s-63s M63x1.5 15 2/2? 21/30 44.5 50.0 96.0 85.0 96.0 97.5
052406 6-63 M63x1.5 15 2/2? 21/30 50.0 56.0 96.0 85.0 96.0 97.5
052407 7-75 M75x1.5 15 2?/3 30/32 56.0 65.0 105.0 96.0 108.0 115.5
The cable glands shall only be used where the temperature, at the point of entry,
is between -20°C and +95°C (standard seal) or -60°C to +160°C (extreme temp. seal).
For unfilled cable use a CCG QuickStop-Ex Barrier Gland.
