首页 > 供应产品 > Peppers铠装防爆格兰（E系列）

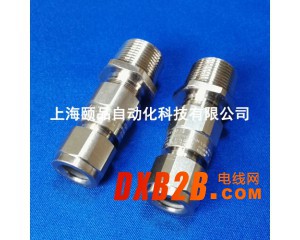

Peppers铠装防爆格兰（E系列）
单价 ￥1.00 / 只对比
销量 暂无
浏览 238
发货 上海预售，付款后60天内
库存 500只起订10只
品牌 Peppers铠装防爆格兰（E系列）
过期 长期有效
更新 2024-04-26 09:06

详细信息


Peppers铠装防爆格兰（E系列）

Peppers代理商【上海颐品自动化科技有限公司】
Peppers铠装防爆格兰（E系列 cable gland）
Peppers铠装防爆格兰系列（Peppers cable glands）

上海颐品自动化科技有限公司

关键词：Peppers防爆格兰，Peppers防爆变径，Peppers防爆堵头，Peppers防爆呼吸阀
Peppers Cable Gland Type E  - (Double Compression Gland for Armoured Cable featuring Dedicated Armour Clamping)

“E” type double compression glands are certified Flameproof Ex d, Increased Safety Ex e, Restricted Breathing Ex nR and Dust Protected Ex ta. They are suitable for use in Zone 1 and 2 for Gas Groups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for Dust Groups IIIA, IIIB and IIIC. Also certified for Class I Zone 1 & Class I Div 2 installations for use with Marine Shipboard & Tray Cables under NEC & CEC. They provide a controlled Ex d & IP seal on the cable inner sheath, an environmental seal on
the outer sheath and a detachable armour specific clamping system for wire (W), braid/tape (X) armoured cables. The gland has been tested to IP66 and IP68 to 50
metres and is available with an IP O-ring seal on metric entry threads. The Integral Earth “IE” version allows the gland to be used with HV cables where the fault load is
greater than 10.4kA and options are available for use with lead sheath, LSOH cables and extreme temperature applications.

Peppers 选型资料（M制螺纹）：上海颐品自动化科技有限公司

Peppers E1WBF 16/M20 16 M20x1.5 8.4 13.5 4.0 8.4 0.90 0.15 - 0.35 24.0 16.0 58.0
Peppers E1WBF 20s/M20 20s M20x1.5 12.9 16.0 8.0 11.7 0.90 - 1.25 0.15 - 0.35 24.0 16.0 58.0
Peppers E1WBF 20/M20 20 M20x1.5 15.5 21.1 6.7 14.0 0.90 - 1.25 0.15 - 0.50 30.0 16.0 58.0
Peppers E1WBF 25/M25 25 M25x1.5 20.3 27.4 13.0 20.0 1.25 - 1.60 0.15 - 0.50 38.0 16.0 58.0
Peppers E1WBF 32/M32 32 M32x1.5 26.7 34.0 19.0 26.3 1.60 - 2.00 0.15 - 0.55 46.0 16.0 65.0
Peppers E1WBF 40/M40 40 M40x1.5 33.0 40.6 25.0 32.2 1.60 - 2.00 0.20 - 0.60 55.0 16.0 72.0
Peppers E1WBF 50s/M50 50s M50x1.5 39.4 46.7 31.5 38.2 2.00 - 2.50 0.20 - 0.60 65.0 16.0 73.0
Peppers E1WBF 50/M50 50 M50x1.5 45.7 53.2 36.5 44.1 2.00 - 2.50 0.30 - 0.80 65.0 16.0 73.0
Peppers E1WBF 63s/M63 63s M63x1.5 52.1 59.5 42.5 50.1 2.50 0.30 - 0.80 80.0 19.0 76.0
Peppers E1WBF 63/M63 63 M63x1.5 58.4 65.8 49.5 56.0 2.50 0.30 - 0.80 80.0 19.0 76.0
Peppers E1WBF 75s/M75 75s M75x1.5 64.8 72.2 54.5 62.0 2.50 0.30 - 1.00 90.0 19.0 82.0
Peppers E1WBF 75/M75 75 M75x1.5 71.1 78.0 60.5 68.0 2.50 0.30 - 1.00 90.0 19.0 82.0
Peppers E1WBF 80/M80 80 M80x2.0 77.0 84.0 62.2 72.0 3.15 0.45 - 1.00 104.0 25.0 110.0
Peppers E1WBF 80H/M80 80H M80x2.0 79.6 90.0 62,2 72.0 3.15 0.45 - 1.00 104.0 25.0 110.0
Peppers E1WBF 85/M85 85 M85x2.0 79.6 90.0 69.0 78.0 3.15 0.45 - 1.00 104.0 25.0 110.0
Peppers E1WBF 90/M90 90 M90x2.0 88.0 96.0 74.0 84.0 3.15 0.45 - 1.00 114.0 25.0 110.0
Peppers E1WBF 90H/M90 90H M90x2.0 92.0 102.0 74.0 84.0 3.15 0.45 - 1.00 114.0 25.0 110.0
Peppers E1WBF 100/M100 100 M100x2.0 92.0 102.0 82.0 90.0 3.15 0.45 - 1.00 114.0 25.0 110.0

Peppers 选型资料（NPT制螺纹）：上海颐品自动化科技有限公司

Peppers E1WBF 16/050NPT 16 NPT 1/2" 8.4 13.5 4.0 8.4 0.90 0.15 - 0.35 24 16.0 58.0
Peppers E1WBF 16/075NPT 16 NPT 3/4" 8.4 13.5 4.0 8.4 0.90 0.15 - 0.35 24 16.0 58.0
Peppers E1WBF 20s/050NPT 20s NPT 1/2" 12.9 16.0 8.0 11.7 0.90 - 1.25 0.15 - 0.35 24 16.0 58.0
Peppers E1WBF 20s/075NPT 20s NPT 3/4" 12.9 16.0 8.0 11.7 0.90 - 1.25 0.15 - 0.35 24 16.0 58.0
Peppers E1WBF 20/050NPT 20 NPT 1/2" 15.5 21.1 6.7 14.0 0.90 - 1.25 0.15 - 0.50 30 16.0 58.0
Peppers E1WBF 20/075NPT 20 NPT 3/4" 15.5 21.1 6.7 14.0 0.90 - 1.25 0.15 - 0.50 30 16.0 58.0
Peppers E1WBF 25/075NPT 25 NPT 3/4" 20.3 27.4 13.0 20.0 1.25 - 1.60 0.15 - 0.50 38 16.0 58.0
Peppers E1WBF 25/100NPT 25 NPT 1" 20.3 27.4 13.0 20.0 1.25 - 1.60 0.15 - 0.50 38 16.0 58.0
Peppers E1WBF 32/100NPT 32 NPT 1" 26.7 34.0 19.0 26.3 1.60 - 2.00 0.15 - 0.55 46 16.0 65.0
Peppers E1WBF 32/125NPT 32 NPT 1 1/4" 26.7 34.0 19.0 26.3 1.60 - 2.00 0.15 - 0.55 46 16.0 65.0
Peppers E1WBF 40/125NPT 40 NPT 1 1/4" 33.0 40.6 25.0 32.2 1.60 - 2.00 0.20 - 0.60 55 16.0 72.0
Peppers E1WBF 40/150NPT 40 NPT 1 1/2" 33.0 40.6 25.0 32.2 1.60 - 2.00 0.20 - 0.60 55 16.0 72.0
PeppersE1WBF 50s/150NPT 50s NPT 1 1/2" 39.4 46.7 31.5 38.2 2.00 - 2.50 0.20 - 0.60 65 16.0 73.0
Peppers E1WBF 50s/200NPT 50s NPT 2" 39.4 46.7 31.5 38.2 2.00 - 2.50 0.20 - 0.60 65 16.0 73.0
Peppers E1WBF 50/200NPT 50 NPT 2" 45.7 53.2 36.5 44.1 2.00 - 2.50 0.30 - 0.80 65 16.0 73.0
Peppers E1WBF 63s/200NPT 63s NPT 2" 52.1 59.5 42.5 50.1 2.50 0.30 - 0.80 80 19.0 76.0
Peppers E1WBF 63s/250NPT 63s NPT 2 1/2" 52.1 59.5 42.5 50.1 2.50 0.30 - 0.80 80 19.0 76.0
Peppers E1WBF 63/250NPT 63 NPT 2 1/2" 58.4 65.8 49.5 56.0 2.50 0.30 - 0.80 80 19.0 76.0
Peppers E1WBF 75s/250NPT 75s NPT 2 1/2" 64.8 72.2 54.5 62.0 2.50 0.30 - 1.00 90 19.0 82.0
Peppers E1WBF 75s/300NPT 75s NPT 3" 64,8 72.2 54.5 62.0 2.50 0.30 - 1.00 90 19.0 82.0
Peppers E1WBF 75/300NPT 75 NPT 3" 71.1 78.0 60.5 68.0 2.50 0.30 - 1.00 90 19.0 82.0
Peppers E1WBF 80/300NPT 80 NPT 3" 77.0 84.0 62.2 72.0 3.15 0.45 - 1.00 104 25.0 110.0
Peppers E1WBF 80/350NPT 80 NPT 3 1/2" 77.0 84.0 62.2 72.0 3.15 0.45 - 1.00 104 25.0 110.0
Peppers E1WBF 80H/300NPT 80H NPT 3" 79.6 90.0 62.2 72.0 3.15 0.45 - 1.00 104 25.0 110.0
Peppers E1WBF 80H/350NPT 80H NPT 3 1/2" 79.6 90.0 62.2 72.0 3.15 0.45 - 1.00 104 25.0 110.0
Peppers E1WBF 85/300NPT 85 NPT 3" 79.6 90.0 69.0 78.0 3.15 0.45 - 1.00 104 25.0 110.0
Peppers E1WBF 85/350NPT 85 NPT 3 1/2" 79.6 90.0 69.0 78.0 3.15 0.45 - 1.00 104 25.0 110.0
Peppers E1WBF 90/350NPT 90 NPT 3 1/2" 88.0 96.0 74.0 84.0 3.15 0.45 - 1.00 114 25.0 110.0
Peppers E1WBF 90/400NPT 90 NPT 4" 88.0 96.0 74.0 84.0 3.15 0.45 - 1.00 114 25.0 110.0
Peppers E1WBF 90H/350NPT 90H NPT 3 1/2" 92.0 102.0 74.0 84.0 3.15 0.45 - 1.00 114 25.0 110.0
Peppers E1WBF 90H/400NPT 90H NPT 4" 92.0 102.0 74.0 84.0 3.15 0.45 - 1.00 114 25.0 110.0
Peppers E1WBF 100/350NPT 100 NPT 3 1/2" 92.0 102.0 82.0 90.0 3.15 0.45 - 1.00 114 25.0 110.0
PeppersE1WBF 100/400NPT 100 NPT 4" 92.0 102.0 82.0 90.0 3.15 0.45 - 1.00 114 25.0 110.0

代理商：上海颐品自动化科技有限公司
电工电气 » 配电输电设备，我们主要是做

CMP，Hawke，CCG，Peppers防爆格兰，REIKU尼龙软管，Anamet金属软管，Boxco电气接线盒

Peppers铠装防爆格兰（E系列）

Peppers铠装防爆格兰（E系列）
